1.2 micron IV Filter for infusion therapy
1.2 micron IV Filter for infusion therapy 1.2 micron IV Filter for infusion therapy 1.2 micron IV Filter for infusion therapy 1.2 micron IV Filter for infusion therapy

1.2 micron IV Filter for infusion therapy

Productdetails:
Plaats van herkomst: China
Merknaam: OEM avaliable
Certificering: YY 0286.1 GB 8368-2018 ISO9001
Modelnummer: F33
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 100,000pcs
Prijs: $0.15-$0.22 per piece
Verpakking Details: 750 stuks per verpakking met etiket, 4 verpakkingen per karton of op maat
Levertijd: 30 dagen
Betalingscondities: L/C, T/T
Contact nu
  • Gedetailleerde informatie
  • Productomschrijving

Gedetailleerde informatie
Product Name: wegwerp 1,2 micron IV-filter Filterhuisvesting: ABS
Grootte van de poriën: 1.2um Middelgroot materiaal: PES, PTFE voor ontluchters
Stop Liquid Height: ≥ 1,5 meter Assemblagewijze: warmte- of ultrasoonlassen
Sterilisatie: Niet-steriele/EOS Type: F, wegwerp
Voordeel: Automatische vloeistofstop Kleur: Natuurlijk, Lichtdicht beschikbaar
Compatibiliteit: Compatibel met standaard IV-buizen Garantie: 3 jaar
Toepassing: Infuusset Land van herkomst: China
Markeren:

1.2 micron

,

iv filter 1.2μm

,

infusion set

Productomschrijving

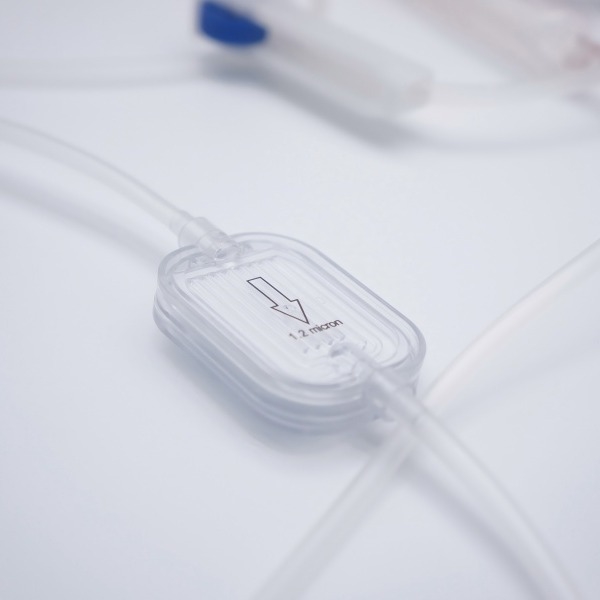

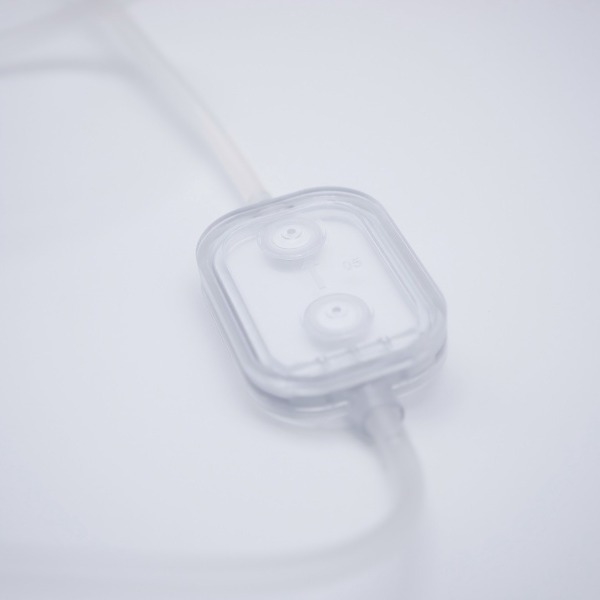

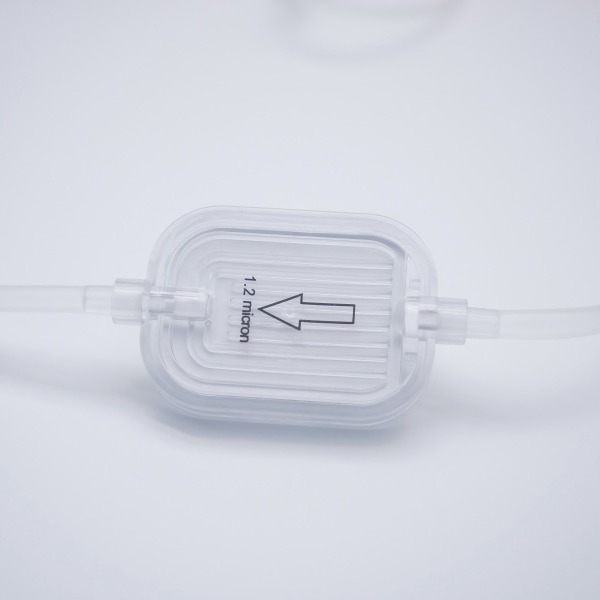

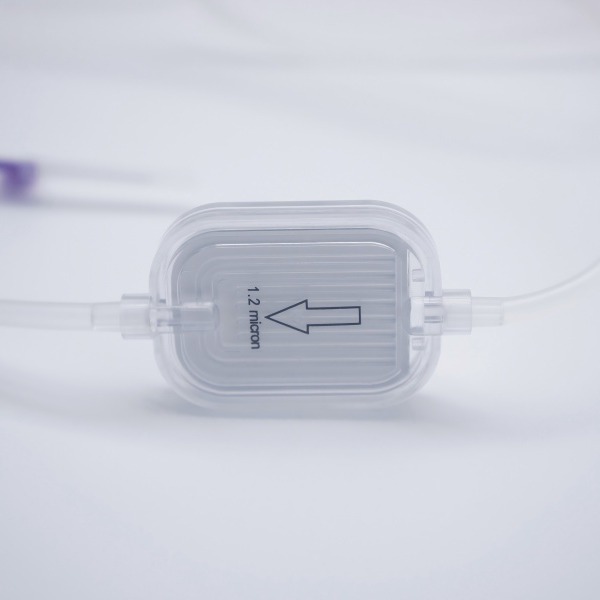

IV Filter With Hydrophilic PES-pp 1.2μm and Hydrophobic PTFE 0.45μm for infusion set



F33 IV Filter is an air eliminating filter for the removal of inadvertent particulate debris and other components like incomplete mixing of drugs and entrained air in catheter which may be found in solutions intended for intravenous use. The filtration efficiency of the membrane and the overall design of the filter can impact the safety of drug delivery for human beings.



Features :

  • Easy to connect to IV tubing sets with standard luer inlet and outlet slip
  • Precision filtration of fine particles
  • High retention efficiency
  • Range of pore size options
  • Automatic air-stop
  • Lightproof-colored housings for light sensitive drugs is available
  • Printing available for ease of product identification

Specifications:





Dimensions: 57*29.5*0.94mm(inlet/outlet connector included)
Weight: 5.7-5.8g
Filtration area: 6.0CM2
Venting area: 0.54CM2
Venting air flow rate: 25ml/min@5kpa
Max burst pressure: 3.6bar(52.5psi)
Operating Temp: 5-40℃
Storage Temp: 0-50℃
Filtration rate: PES-PP 5.0μm ≥95%,
PES-PP 3.0/2.0/1.2μm ≥90%
Min water flow rate: PES-PP 1.2μm ≥500ml/10min@10kpa
PES-PP 2μm ≥600ml/10min@10kpa
PES-PP 3μm ≥800ml/10min@10kpa
PES-PP 5μm ≥1000ml/10min@10kpa
Sterilization: Ethlene Oxide(Max 60℃)



Applications:

  • Filter is designed for use in filtration of intravenous for removal of particles larger than 1.2μm
  • Infusion set



Package&Label:



3000pcs/box, 4 inner PE bags with 750 pcs inside each. each bag is sealed separately and cushion between each other.
Each bag is labeled with information as following, different lots in one box are closed separately and labeled seperately to prevent.

1.2 micron IV Filter for infusion therapy 0

label:

Venous druppelkamer

Inline IV filter

Inline intraveneuze vloeistoffilter
